Tempered U Glass

Thermally tempered U glass is specially designed to satisfy increased safety requirements within common areas of public buildings. This product variant provides greater mechanical strength compared to its annealed version, allowing the creation of large surfaces that are bright while also meeting all safety requirements. In addition, it allows for longer installation lengths compared to standard annealed U glass products. Heat-soaked thermally tempered glass is available upon request.



Yongyu Glass' Tempered Safety U Glass complies with GB15763-2005, EN15683-2013 (By TUV Netherland), ANSI Z97.1-2015(By Intertek USA). It makes our Tempered U glass suitable for use in critical locations where safety glass is required.

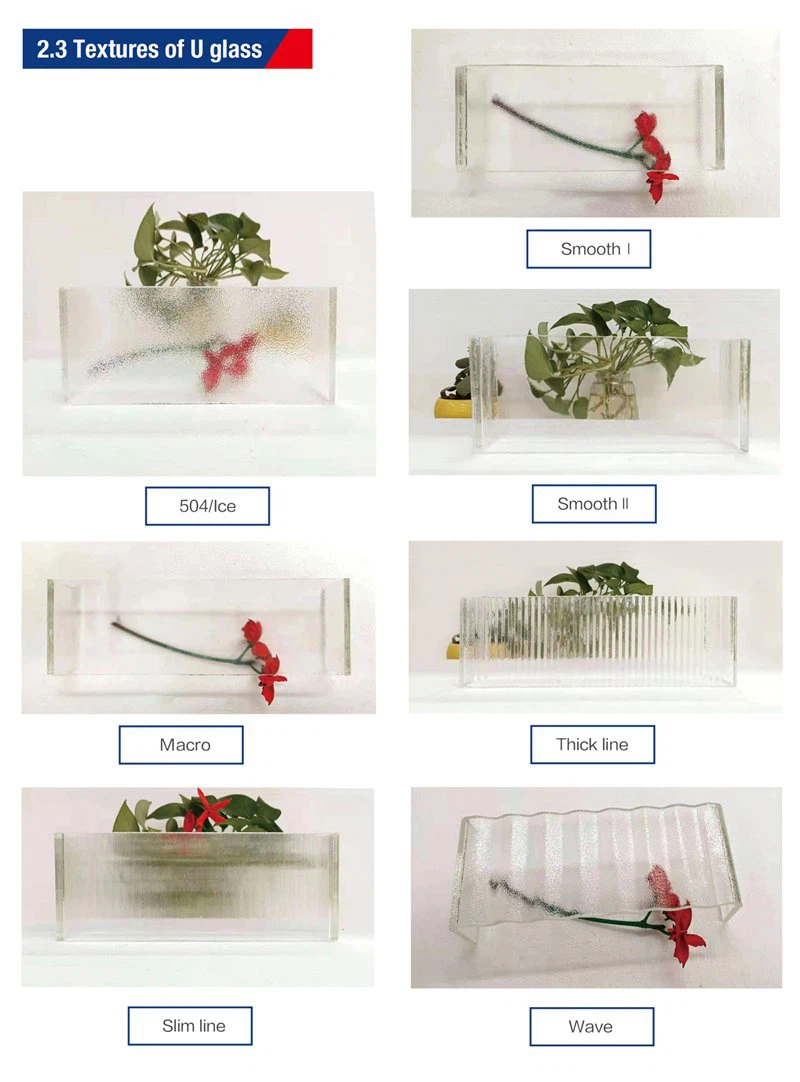

Yongyu Glass Colour ceramic frit glass is tempered as a matter of course during the enameling process. Toughening is offered for all U-channel glass surface textures in lengths up to 8 meters. The tempered glass can also be sandblasted for a matt finish or painted.



Yongyu Glass Safety U Glass could be heat soak tested to minimize spontaneous breakages from nickel sulfide inclusions. It is specifically designed to test U-channel glass and is subject to regular independent inspection and testing.



• Three to 5times harder than ordinary float glass.
• Once breakage occurs, the glass disintegrates into small cubical fragments, which are relatively harmless to human body. Sizes are produced as per customer request.
• Impact resistance: A steel ball weighing 1040 grams fell from 1 meter, and the glass was intact.
• Impact performance of shot bag: the total mass of the largest 10 fragments is less than the mass (113.75g) equivalent to the area of 65 m² of the sample.
• U-shaped glass is tempered at high temperature without deformation, and the z value of flange verticality is less than 1mm.

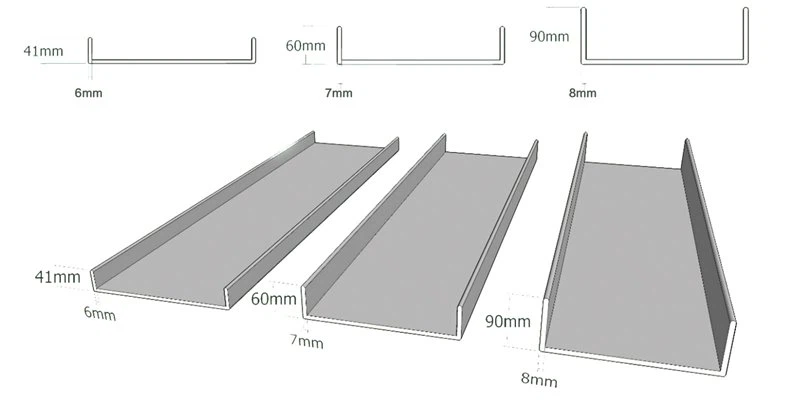

The specification of U glass is measured by its width, flange height, glass thickness, and design length.







Varies with its width and thickness. The maximum length that can be produced for U glass of various standard sizes is as follows sheet shows:





U Glass can be used internally, externally, for straight & curved walling, partitions, roofs and windows. It can be considered for all manner of projects, from schools, offices, medical centers, public buildings ,to public & private housing.



Because U-shaped glass has good light transmission and non-see-through properties and good decorative properties, it can be used for non-load-bearing interior and exterior walls of industrial and civil buildings such as airports, stations, stadiums, factories, office buildings, hotels, residences, and greenhouses. Partitions, windows and roofing. There are two types of U-shaped glass: colorless and colored. Colored glass is divided into two types: body coloring and coating. There are many colors of coating, the common ones are orange, yellow, beige, sky blue, blue, stone blue, green and wisteria. It has the advantages of ideal light transmittance, good sound insulation, thermal insulation, and simple construction.



Our Glass is approved to Chinese Standard CCC&Europe Standard EC 12150



● By GB 15763.2-2005 Tempered Glass Standard

● By BS 6206 British Standard

● Chinese Safety Glass Compulsory Certification (CCC)



Q: How can I buy glass from you?

We need these details: size, thickness, quantity, and color from you to make an exact quotation.



Q: Would you offer a sample for our quality test?

Yes. We can provide glass samples for free, and the express charge will be paid by the customer.



Q: Would you accept mixing different glasses into one container?

Yes. We can accept mixed containers, please confirm all details in advance.



Q: Would you provide hardware accessories?

We don't produce hardware accessories, but we can purchase them for you.
